LR Series R type transformer


LR series R-type transformers (hereinafter referred to as R-type transformers) are the latest research and development transformers that our company introduced Japanese R-type transformer technology. It is called a structural revolution of transformers in the 1990s.


  • Tel:+86 531-85821510 / +86 531-81260215
  • Phone:+86 13953163229 / +86 15953110800
  • Email:lanpuele@163.com
  • Address:New Material Industrial Park, Tianqiao District, Jinan City, Shandong Province
Performance Characteristics


LR series R-type transformers (hereinafter referred to as R-type transformers) are the latest research and development transformers that our company introduces Japanese R-type transformer technology. It is called a structural revolution of transformers in the 1990s. Excellent performance Fu LR series transformer can meet the latest international standards.

LR series R-type transformers are widely used in printers, CRT monitors, keyboards, automatic devices, measuring instruments, stereo radios, speakers, TV cameras, electronic scales, copiers, fax machines, radio equipment, NC machine tools, synthesizers, and games Machines, accident protection devices, computers, audio equipment, adapters, battery charging light equipment.

LR series R-type transformers have different characteristics from Japanese-type transformers

■ LR series R type transformer is 30% smaller than EI type transformer, 40% thinner and 40% lighter;

■The temperature rise is less than half of that of the Japanese model, and the noise is very small;

■Leakage magnetic field is 1/10 of the small transformer, and the exciting current is small;

■High performance, low price, high density installation.

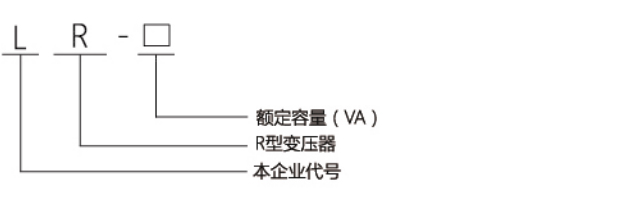

Model Definition Specification
Product Parameter

I Model

A

W

X

E

F

G

t

Capacity VA

LR-10

74

63

34

68

48

4.2

1

~15

LR-20

80

70

39

50

55

4.2

1

20-28

LR-30

94

77

42

70

60

5.2

1

30-45

LR-40

96

80

44

70

60

5.2

1

35-55

LR-50

97

85

50

75

65

5.2

1.2

50-65

LR-80

122

89

52

90

70

5.2

1.2

70-100

LR-100

123

104

58

100

80

5.2

1.2

90-130

LR-160

136

115

63

100

85

5.2

1.3

150-200

LR-260

150

117

66

130

95

5.2

1.3

200-300

LR-320

156

128

70

135

95

5.2

1.3

280-380

LR-600

178

145

83

145

115

5.2

1.3

380-650

LR-800

190

157

92

150

125

6.2

1.3

650-900

LR-1000

212

172

99

178

140

8.2

2.0

650-1200

LR-1500

224

186

108

175

145

8.2

2.0

1300-1800

LR-2000

238

200

117

185

160

8.2

2.0

1800-2500

LR-3000

260

215

136

200

175

8.2

2.0

2500-3200

LR-3500

260

260

136

200

180

8.2

2.0

3200-3800

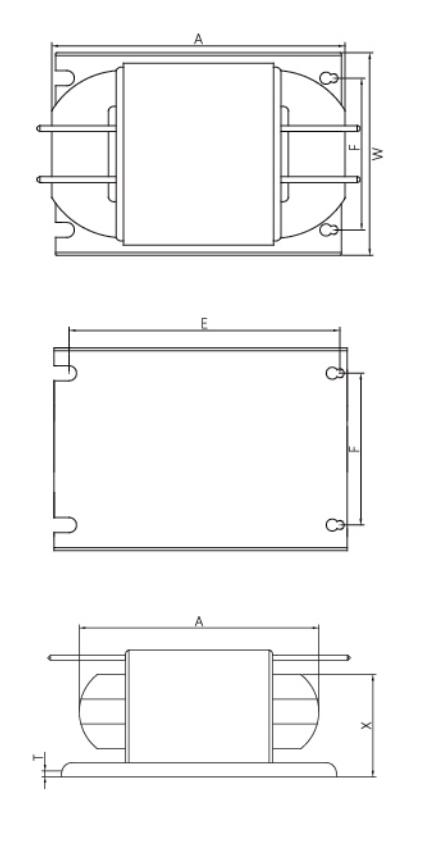

Shape And Installation Dimensions
